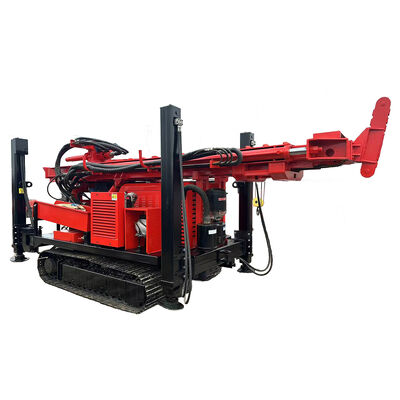

350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig

1
MOQ
negotiable
τιμή
350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Όνομα: Πλήρως υδραυλικό ερπυστριοφόρο τρυπάνι/εξοπλισμός γεωτρήσεων γεώτρησης 350m Βάθος
Λέξη-κλειδί: Γεωτρύπανο/Γεωτρύπανο γεώτρησης νερού
Βάθος: 350 μέτρα
Διάμετρος γεώτρησης: 105325mm
Πίεση αέρα: 10,25-3,5MPa
Διάστημα ράβδου: 3m/6m
Ράβδος διάτρησης.: 76/89/102mm
Δύναμη ανύψωσης: 26T
Το βάρος της εξέδρας: 8.5t
Διάσταση: 5,9mx 1,8mx 2,3m
Βασικές πληροφορίες
Τόπος καταγωγής: Κίνα
Μάρκα: Glorytek
Πιστοποίηση: CE
Αριθμό μοντέλου: GL350S
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Τυπική Συσκευασία Εξαγωγής
Χρόνος παράδοσης: 20 ημέρες
Όροι πληρωμής: Τ/Τ, L/C, Western Union, MoneyGram, D/P, D/A
Δυνατότητα προσφοράς: 40sets/month
Περιγραφή προϊόντων

GL350S Fully Hydraulic Crawler Type Borehole Drill Rig

Description:

The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.

nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.

It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.



Tehnical Parameter:





Technical Parameter
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 26T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 9900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 8.5T
Dimension 5.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW



350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig 0350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig 1350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig 2



Company Profile



350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig 4



We have attended many exhibitions to showcase our products.



350m Crawler Type Deep Borehole Water Well Drill/Drilling Rig 5
